You must configure at least one Window on your source to create Validators. You can create several Windows on the same Source, according to your business requirements.

For example, for an aggregate calculation you must define a Window and what datapoints to include to validate the mean, max, or min.

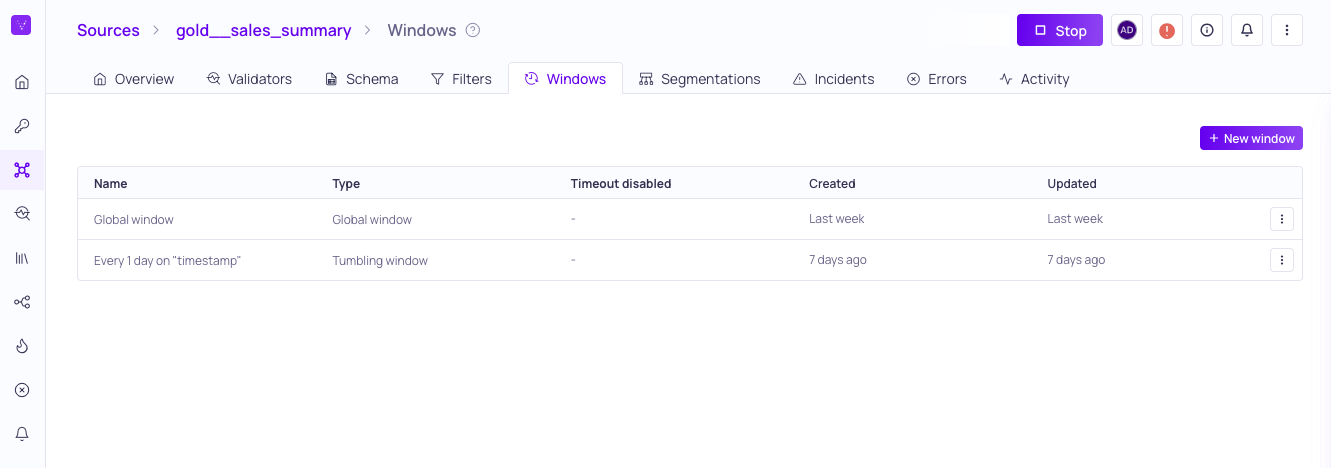

Depending on your Source type, you can configure the following Window types: Fixed Batch, Global, Tumbling, or File.

Fixed Batch Window

Fixed batch windows are defined by a specified number of datapoints, from a certain data-time field.

Global Window

Global windows calculate all validator metrics for the entire source, rather than for a sequence of windows. This window will perform a full load of data every polling cycle--which is fine for small tables, but will lead to slow performance and high resource usage for bigger tables.

Validators using a global window are evaluated based on clock-time, rather than data-time.

📘

Sources with timestamps

Global window is only available for Data Warehouses and Query Engines. If the source includes a timestamp field, we recommend using a tumbling window instead.

Tumbling Window

Tumbling windows are a series of fixed-sized, non-overlapping, and contiguous time intervals. For example, hourly or weekly.

👍

Tumbling Window Sizes

The smallest allowed size for a tumbling window is:

• Data Warehouses, Object Storages, and Query Engines: 30 minutes
• Data Streams: 10 minutes

Validators with a Tumbling window always follow data time, which means that the time used in graphs and metrics represents the time of the dataset (such as, the time of the data in the warehouse).

Validio polls for new data on a schedule defined by the polling interval configured on the source. A tumbling window closes (finishes the computation and updates the graph) as soon as all the data for that window has arrived.

📘

Truncating UTC time windows

Validio uses UTC times for windows. For tumbling windows, the time is also truncated depending on the window size. For example,

• Daily windows will always be from 00:00 UTC to 24:00 UTC.
• 12 hour windows will be 00:00 UTC to 12:00 UTC and 12:00 to 24:00 UTC.
• Hourly windows will always start on the hour: 00:00 UTC, 01:00 UTC, 02:00 UTC, and so on.
• 30 minute windows will truncate to every whole and half hour: 02:00 UTC, 02:30 UTC, 03:00 UTC, and so on.

Validio determines that all the data has arrived in two ways:

• New data arrives with a timestamp that is after the window end time. For example, if the window is from 13:00 to 14:00 and there is new data at 14:30, Validio assumes all data between 13:00 - 14:00 has arrived.
• When Disable window timeout is selected and data exists within a window. For example, if the window is from 13:00 to 14:00, and a poll for new data found a data point with a time 13:30, that window will close.

In general, the graphs for validators will display data points until the last datapoint, and then stick at whenever the last window closes because the graphs do not have new data points to show unless new data arrives.

📘

Note

The exception is seen in Freshness validators, where the graph will continue to fill in intermediate data points as time passes even when no data arrives. For more information, see Freshness Validator.

File Window

File windows consist of logical batches by file/BLOB. For example, one CSV file is a logical batch.

📘

Note

The file Window type is only available for Object storage Source types.
